3D File Format for Furniture CGI:

Every CGI project starts with a file. Before any lighting is set up, before materials are assigned or renders are launched, someone has to open a 3D file and see what’s actually inside. The format of that file determines what data is available, what needs to be rebuilt from scratch, and how much preparation work lies ahead.

This chapter covers 12 3D file formats that come up regularly in product visualization and CGI production — from formats used in manufacturing and engineering, to newer formats built specifically for ecommerce and AR. Each entry explains what the format contains, where it performs well, and where it runs into trouble.

Understanding 3D Files

A 3D file is more than geometry. Depending on the format, it can carry material definitions, UV maps, texture references, animation data, scene hierarchy, lighting settings, and assembly structure. Some formats store all of this in a single file; others split it across multiple files that need to stay together.

In product visualization, 3D files come from three main sources:

• CAD or engineering software (SolidWorks, Fusion 360, CATIA)
• 3D modeling tools (3ds Max, Maya, Blender, Cinema 4D)
• Scanning or manufacturing pipelines

Each source tends to produce different kinds of files — with different topology, precision levels, and data completeness. A CAD file built for manufacturing tolerances looks very different from a model built for a product render. Sending the wrong format to a rendering studio usually means extra cleanup time, and sometimes a full rebuild.

3D File Format Types

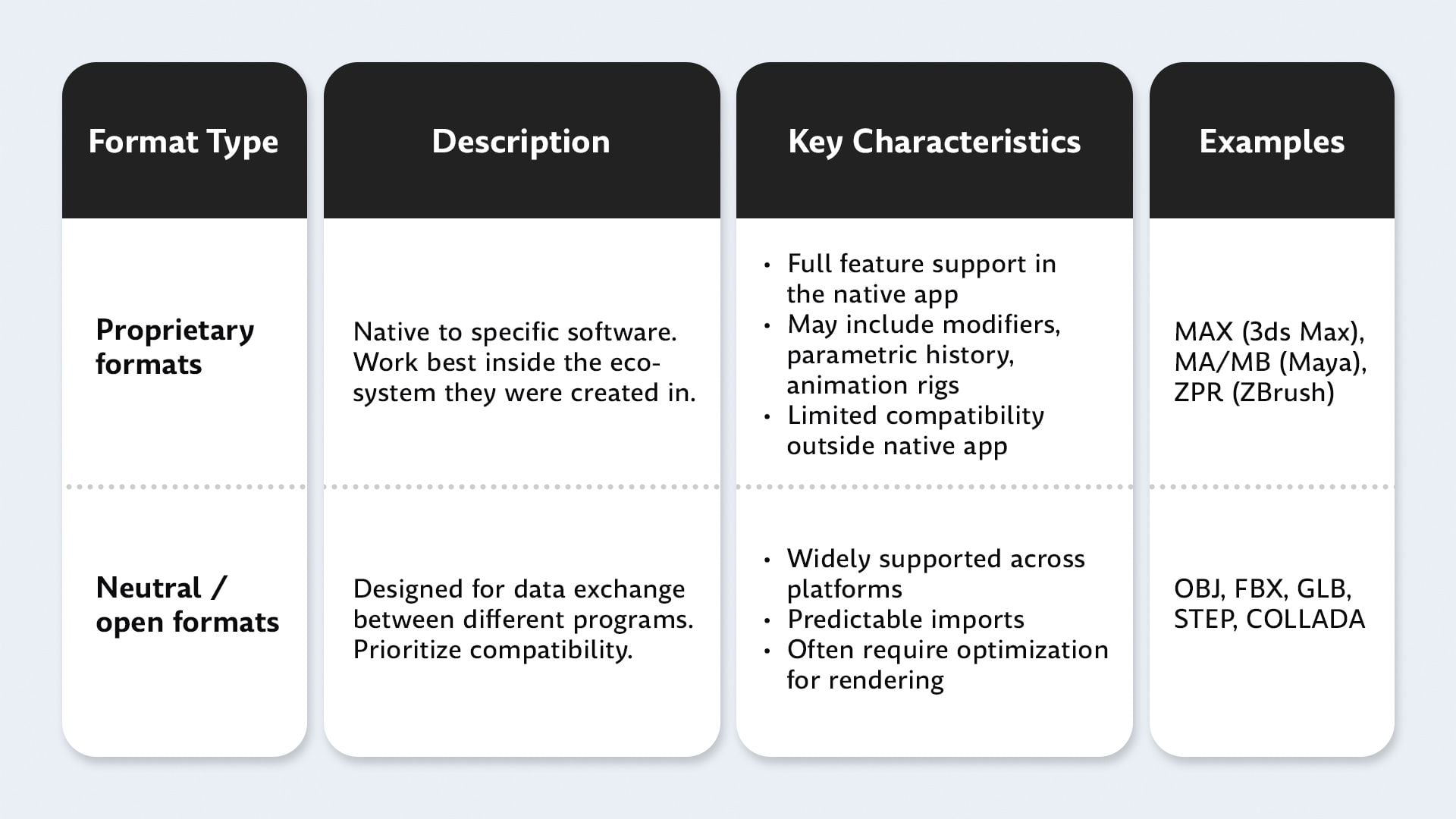

3D formats generally fall into two categories. Knowing the difference helps explain why some files transfer cleanly between tools and others don’t:

Core Features of a 3D File

The format name matters less than what’s actually inside the file. When a rendering studio evaluates an incoming 3D file, these are the things they check first:

• Geometry quality — clean topology, correct scale, and accurate proportions
• Surface data — normals, smoothing groups, and curvature
• Material support — whether materials and textures are embedded or referenced externally
• UV mapping — essential for applying realistic textures
• Hierarchy — useful for complex products with multiple parts
• Precision — critical for technical or industrial products
• Animation data — needed for configurators, exploded views, or product films

A clean, well-structured file speeds up every stage of production. Missing UVs or broken topology means the studio spends the first hours of a project fixing the file rather than working on the render.

12 Most Common 3D File Formats

1. STL Standard Tessellation Language

• Stores geometry only (triangulated mesh)
• No materials, colors, or textures
• Often dense or uneven topology
• Used in 3D printing and rapid prototyping
• Most universal format for 3D printers

Use case: 3D printing, manufacturing reference, CAM workflows. Useful when only the shape matters and textures will be handled separately.

Limitation: No material data at all — everything has to be rebuilt before rendering. Topology is often too dense or irregular for direct use in visualization.

2. 3MF 3D Manufacturing Format

• XML-based open format
• Supports geometry, materials, and colors — unlike STL
• Supported by Microsoft, HP, Autodesk, Shapeways, and most 3D printing software
• More complete than STL for printing pipelines

Use case: Modern 3D printing pipelines where material and color information needs to travel with the geometry.

Limitation: Not a rendering format. Useful on the manufacturing side, but visualization studios rarely work with 3MF directly.

3. 3DS 3D Studio (Legacy)

• Native format of early 3ds Max versions
• Stores mesh, materials, lighting, cameras, and basic animation
• Polygon count limit per file
• Replaced by the MAX format in modern workflows

Use case: Legacy projects and archived files from older 3ds Max workflows.

Limitation: Outdated. The polygon limit makes it impractical for detailed product models. OBJ or FBX are better choices in any modern context.

4. MAX 3ds Max Native Format

• Native format of 3ds Max
• Stores complete scenes: geometry, materials, lighting, cameras, animation, modifiers, and render settings
• Supports parametric history and editable modifier stacks
• Only opens directly in 3ds Max

Use case: Direct handoff between teams working in 3ds Max. Since CGIFurniture uses 3ds Max as its primary tool, MAX files are the cleanest option when the source was also built in Max.

Limitation: No compatibility outside 3ds Max without conversion. Cannot be used in game engines or real-time apps directly.

5. OBJ Wavefront OBJ

• Supports geometry, UVs, and material references (.mtl file)
• Simple, lightweight, and widely compatible
• Supported by 3ds Max, Maya, Blender, Cinema 4D, ZBrush, Rhino, and more
• Textures stored separately — must be included when sharing files

Use case: Product rendering, texturing, asset exchange between studios. If you’re not sure what format to send, OBJ is a safe default.

Limitation: No animation support, no scene hierarchy. For complex multi-part products or anything animated, FBX is a better fit.

6. COLLADA (DAE) Digital Asset Exchange

• XML-based open format
• Supports geometry, materials, textures, animations, and scripts
• Works across 3ds Max, Maya, Blender, Cinema 4D, SketchUp, Unreal, Unity, Houdini
• Identified by .dae extension

Use case: Cross-platform asset transfers, interactive content, motion CGI, game and film pipelines. Good when tools on both ends support it.

Limitation: Import results vary depending on which application exported the file. Worth testing before committing to it for a large project.

7. VRML / X3D Legacy Web 3D Formats

• VRML (Virtual Reality Modeling Language) was the first web 3D format (1994)
• X3D is the modern successor, supporting geolocation, shaders, and multi-texture rendering
• Both support geometry, animation, and scripts
• X3D works in browsers via XML, DOM, and XPath standards

Use case: Legacy web projects, heritage 3D data, and older interactive applications.

Limitation: VRML is no longer used in practice. X3D never gained wide adoption. GLB/glTF has replaced both for any new web 3D work.

8. GLB / glTF GL Transmission Format — “JPEG of 3D”

• glTF is an open standard by the Khronos Group
• GLB is the binary single-file version of glTF
• Packages geometry, PBR materials, textures, and animations in one file
• Natively supported by Shopify, Amazon, Google Search, Sketchfab, and all major web browsers
• Optimized for fast loading — minimal file size without quality loss
• Default format for WebAR and real-time 3D product previews

Use case: Ecommerce 3D product viewers, WebAR, Shopify listings, Google 3D search, interactive product pages. If a model is going online, GLB is almost certainly the format it needs to be in.

Limitation: Not used in traditional offline rendering pipelines. Built for delivery and display, not for high-resolution production rendering.

9. STEP / STP Standard for Exchange of Product Model Data

• Official ISO international standard (ISO 10303)
• Extremely precise geometry — designed for engineering and manufacturing
• Supported by Fusion 360, ArchiCAD, CATIA, SolidWorks, OnShape, PTC Creo, TurboCAD
• Ideal for products with mechanical components or technical specifications

Use case: Engineering-grade products: appliances, hardware, mechanical components, industrial furniture. When dimensional accuracy is the priority, STEP is the right starting point.

Limitation: Geometry is precise but often unrenderable without work. Topology is usually too dense or irregular for visualization. Expect retopology and UV setup before any rendering can happen.

10. FBX Filmbox

• Supports geometry, materials, textures, hierarchy, animation, cameras, and lights
• Excellent compatibility with 3ds Max, Maya, Unreal Engine, Unity, AutoCAD
• Can store both static and animated product data
• Binary or ASCII encoding

Use case: Product animation, configurators, real-time visualization, and game engines. When a project involves movement or multiple assembled parts, FBX is usually the right call.

Limitation: Autodesk proprietary format. Transfers between non-Autodesk tools can drop data. Test imports when the pipeline involves unfamiliar software.

11 USDZ Universal Scene Description (Apple / Pixar)

• Developed by Apple and Pixar based on USD framework
• Native format for AR Quick Look on iOS and iPadOS
• Allows one-tap AR product preview in Safari and apps on iPhone/iPad
• Supported by Apple’s ecosystem: iOS, macOS, Xcode
• Single archive file containing geometry, materials, and textures

Use case: iOS AR experiences. Any furniture or home goods brand running AR on Apple devices needs USDZ. Works alongside GLB — the two formats together cover all major platforms.

Limitation: Apple only. Android and web AR require GLB instead. Most ecommerce AR setups need both files.

Quick Reference: Which Format to Use

A quick lookup by project goal. Most complex projects will use more than one format across different deliverables.

How CGIFurniture Works with 3D Files

CGIFurniture accepts all the formats covered in this chapter. Our primary production software is 3ds Max, so MAX files come in ready to use. OBJ, FBX, STEP, COLLADA, and STL are all handled regularly — each with a slightly different preparation process depending on what’s in the file.

If the file needs conversion, retopology, or material reconstruction before rendering can begin, that work is handled by our CG team as part of the project. Not sure which format to send? Client managers can look at your source file and tell you what will work best for your specific output.

For ecommerce and AR deliverables, we provide both GLB and USDZ — GLB for web, Android, and Shopify; USDZ for iOS AR Quick Look. Both are generated from the same master model, so there’s no extra production overhead on your end.

Summary

Format choice comes down to what the model needs to do. The same product might need three different files for three different outputs: a MAX file for the render, a GLB for the Shopify listing, and a USDZ for the iOS AR experience. That’s normal — a good studio will handle all three from a single master model.
